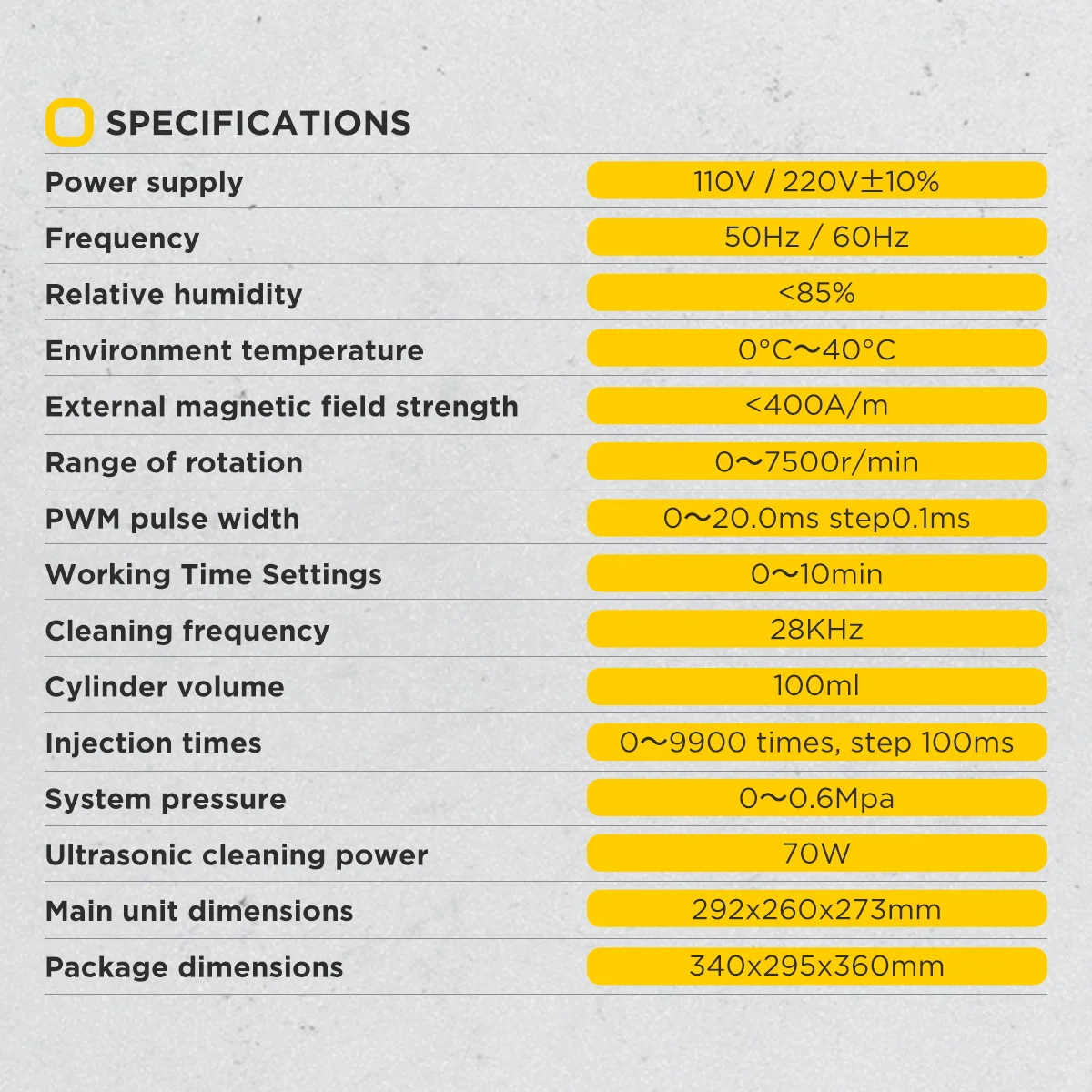

SPECIFICATIONS
Brand Name: AUTOOL
Support for: Automobile fuel nozzle heating cleaning detector
Item Type: 4 Cylinders Injector heating clean test machine
Material: Aluminum alloy
Fuel Tank Capacity: 1000 ml TESTER CLEANER
Capacity of Measuring Cylinder: 100 ml
Fit for: Gasoline car motorcycle injector
Vehicle Type: Motorcycle, Passenger Vehicle
Size: 36x34x29cm
Weight: 8KG
Speed Range: 0~7500 rpm
Environment Temperature: 40°C
Injecting Times: 0~9900 Step: 100ms
PWM Pulse: 0~20.0 ms Step: 0.1 ms
System Pressure: 0~0.6Mpa (adjustable)
Time: 0~20 minute (adjustable)
Power of Ultrasonic Cleaning: 70W
Warranty: 3 Year
1: injector cleaner
2: fuel injector cleaning kit
3: injector cleaning
4: injector checking device
5: injector washing
6: fuel injector tester
7: clean gasoline injectors
8: diesel injector cleaner
9: Injector flushing
10: injector cleaning kit
11: gasoline injectors tester
12: injector tester
13: gdi injectors laboratory
14: injector cleaner tool
15: car injector washing
16: inspection tools
17: injectors tester
18: inspection tools
19: diesel injectors cleaner
20: Tester machine
Description：

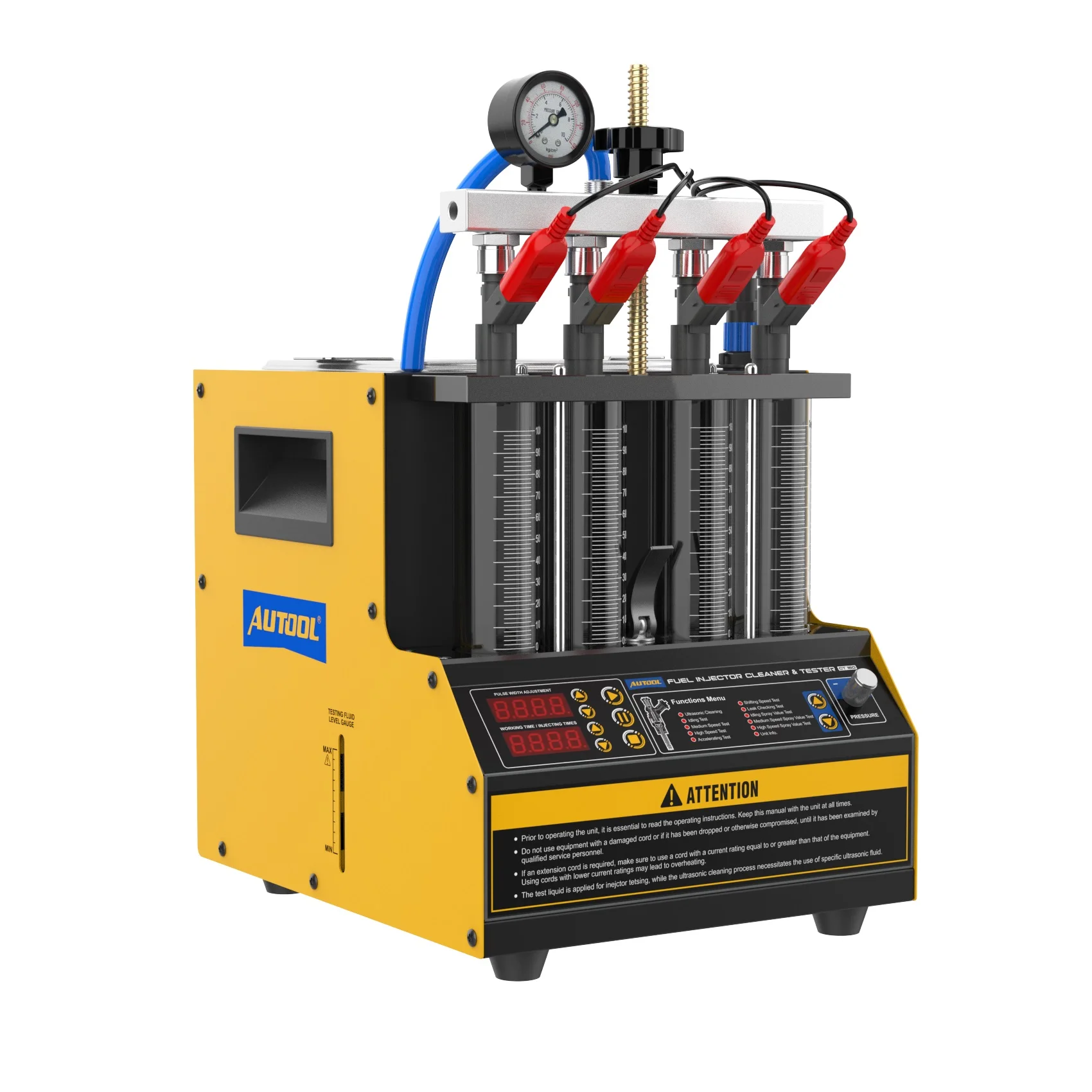

AUTOOL CT160 Car Fuel Injector Tester Heating Cleaner is a professional 4 cylinders auto fuel injector testing cleaning machine. It will help us clean and test the injectors of gasoline cars and motorcycles. Support for more cars and motorcycles. Can only be used to clean diesel fuel injectors,not for testing diesel fuel injectors. The cleaning fluid is 3M car injector cleaning fluid, and the test fluid is industrial alcohol. Its working voltage range is 110-230V and English control panel.
Our product supports 99% of fuel injector cleaning and testing. But for diesel injectors, it can only support cleaning but not testing. If you use it to test GDI injector, please be sure to purchase additional CT60 pulse signal transmitter and GID injector's connectors, so the test effect is the best.If you want to buy a professional for GDI testing, please buy CT400, you will be satisfied with it.
Note：
AUTOOL CT160 Car Fuel Injector Tester Heating Cleaner has been arranged for strict quality inspection before leaving the warehouse, and there will be no more defective products. The oil pump is working normally, please rest assured to buy. Feel free to contact me if you have any questions about the device. Thank you
Support For 99% Cars & Motorcycles
Support for Audi，for Australia Ford，for Benz，for BMW，for Brilliance，for Chevrolet，for Chevy，for Chrysler，for Citroen，for Dacia，for Dadi，for Daewo，for Daihatsu，for Demo，for Fiat，for Ford，for GM，for Holden，for Honda，for Hyundai，for Isuzu，for Jaguar，for Kia，for Lancia，for Land Rover，for Mahindra，for Maruti，for Mazda，for Mitsubish，for Nissan，for Opel，for Peugeot，for Porsche，for Renault，for Romeo，for Rover，for Saab，for Seat，for Skoda，for Smart，for Subaru，for Suzuki，for Tata，for Toyota，for Volvo，for VW，for Yamaha.
Why Choose AUTOOL CT160 Fuel Injector Cleaner & Tester Machines?
AUTOOL CT160 is an entry-level model for testing and cleaning of motorcycle and automobile fuel injectors. It adopts ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning technology, and supports simultaneous cleaning and testing of four-cylinder fuel injectors. This CT160 injector machine simulates various working conditions of the engine which can clean and test the fuel injectors of most of the automobiles and motorcycles. It is compact in size and simple to operate, making it suitable for small and medium-sized auto and motorcycle repair shops and DIY users.

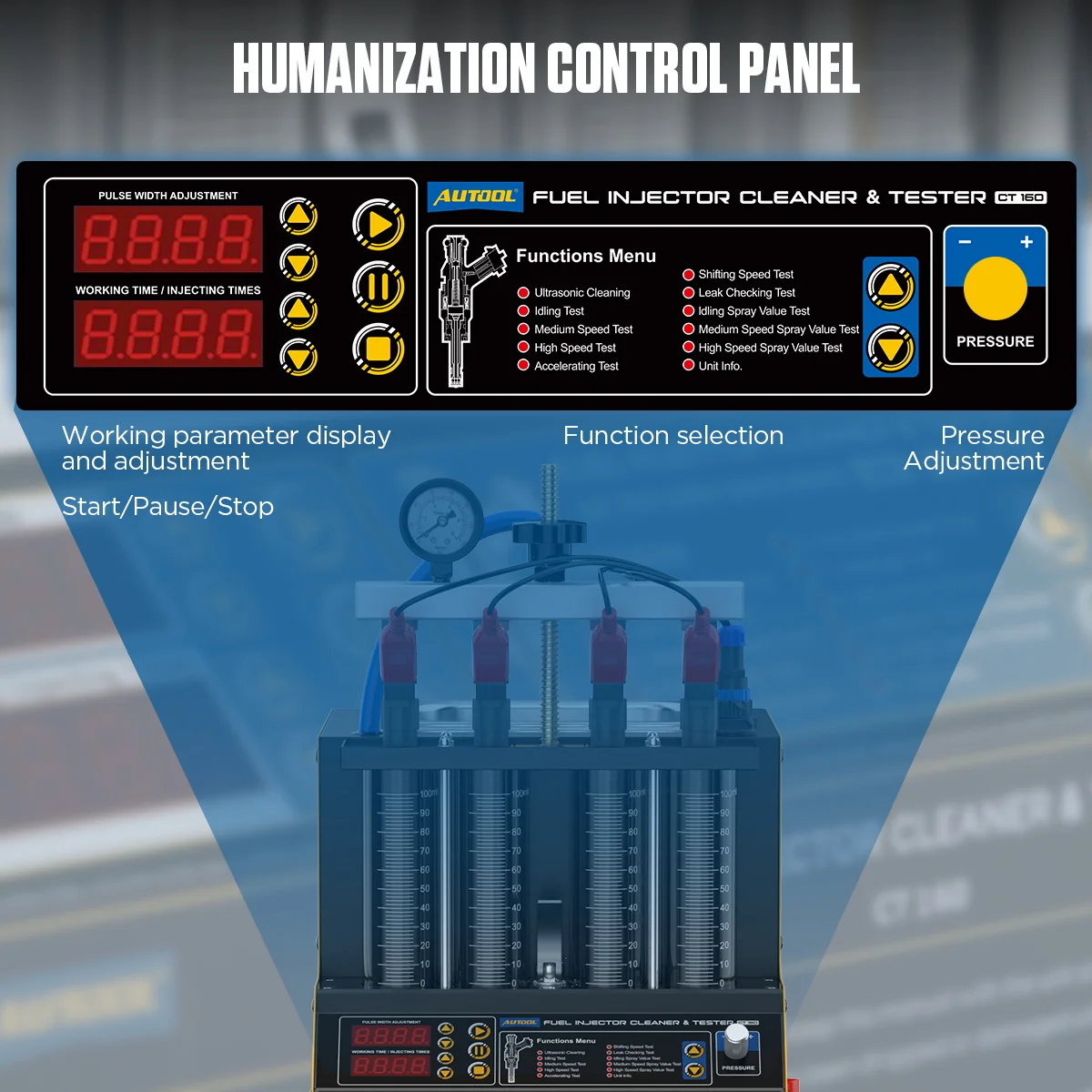

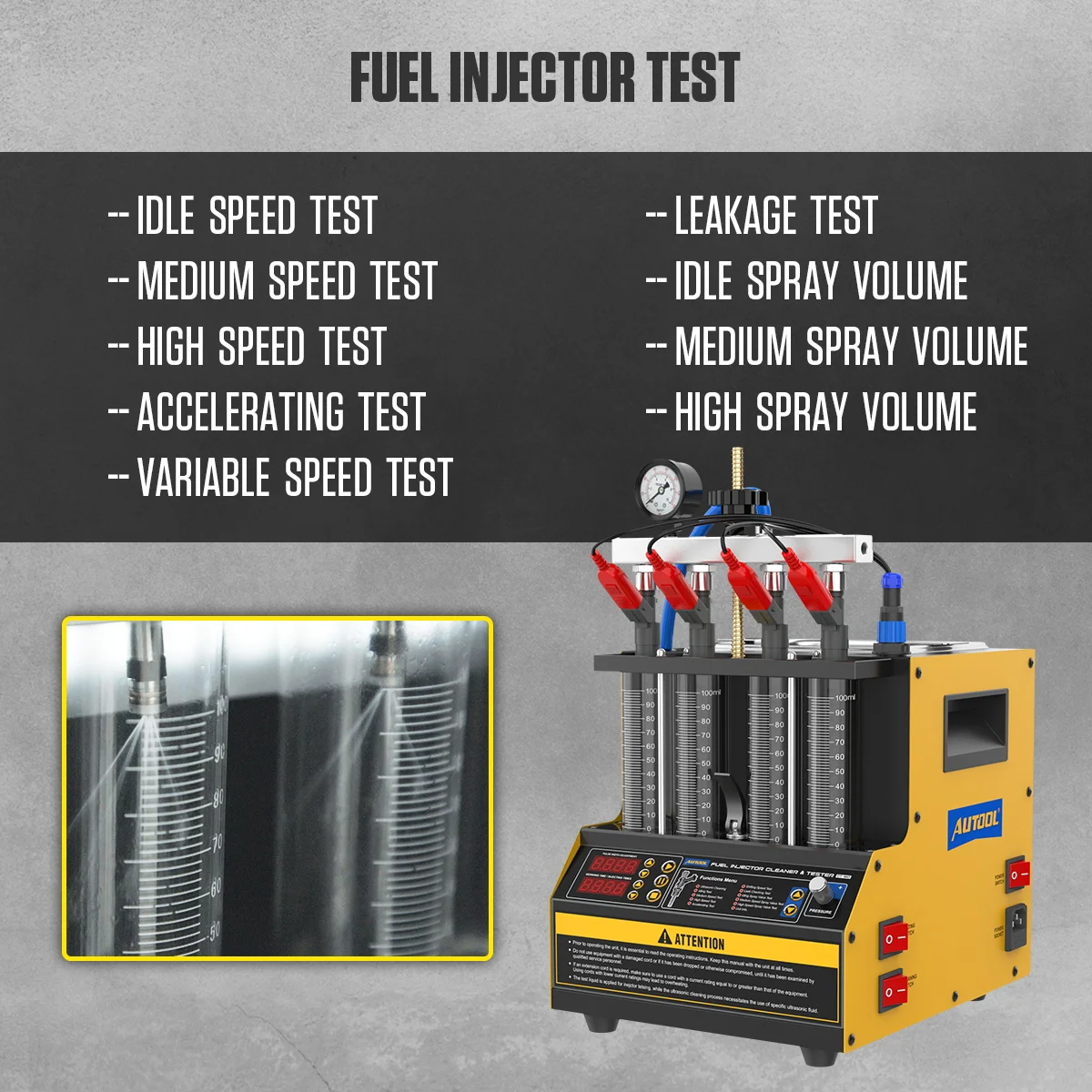

It is an expert in injector solutions, featuring 11 injector-specific functions
01. Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.
02. Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
03. Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
04. High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.
05. Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
06. Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.
07. Leakage test: Test the sealing condition of the fuel injector.
08. Idle dpeed sprayability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
09. Medium speed sprayability test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.
10. High-speed sprayability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
11. Main unit information: used to store the product number and date of manufacture of the product.
How to choose test fluid?
The test fluid is used to test and judge whether the performance of the fuel injector is in good condition. It is a colorless and transparent liquid with no irritating odor, non-corrosive, and not easy to emit. Its function is to simulate various working states of the fuel injector as a medium. In order to achieve the best test effect, it is recommended to use professional automotive injector test fluids. If it is not available locally, as an alternative, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the test fluid.
How to choose cleaning fluid?
Cleaning fluid is used to clean deposits (such as carbon deposits) on fuel injectors, and it is usually highly corrosive and flammable. In order to achieve the best test effect, it is recommended to use professional injector ultrasonic cleaning fluid. If it is not available locally, it's recommended that medical alcohol with an alcohol content of more than 75% can be used instead of the cleaning fluid, but note that the effect may not good enough.

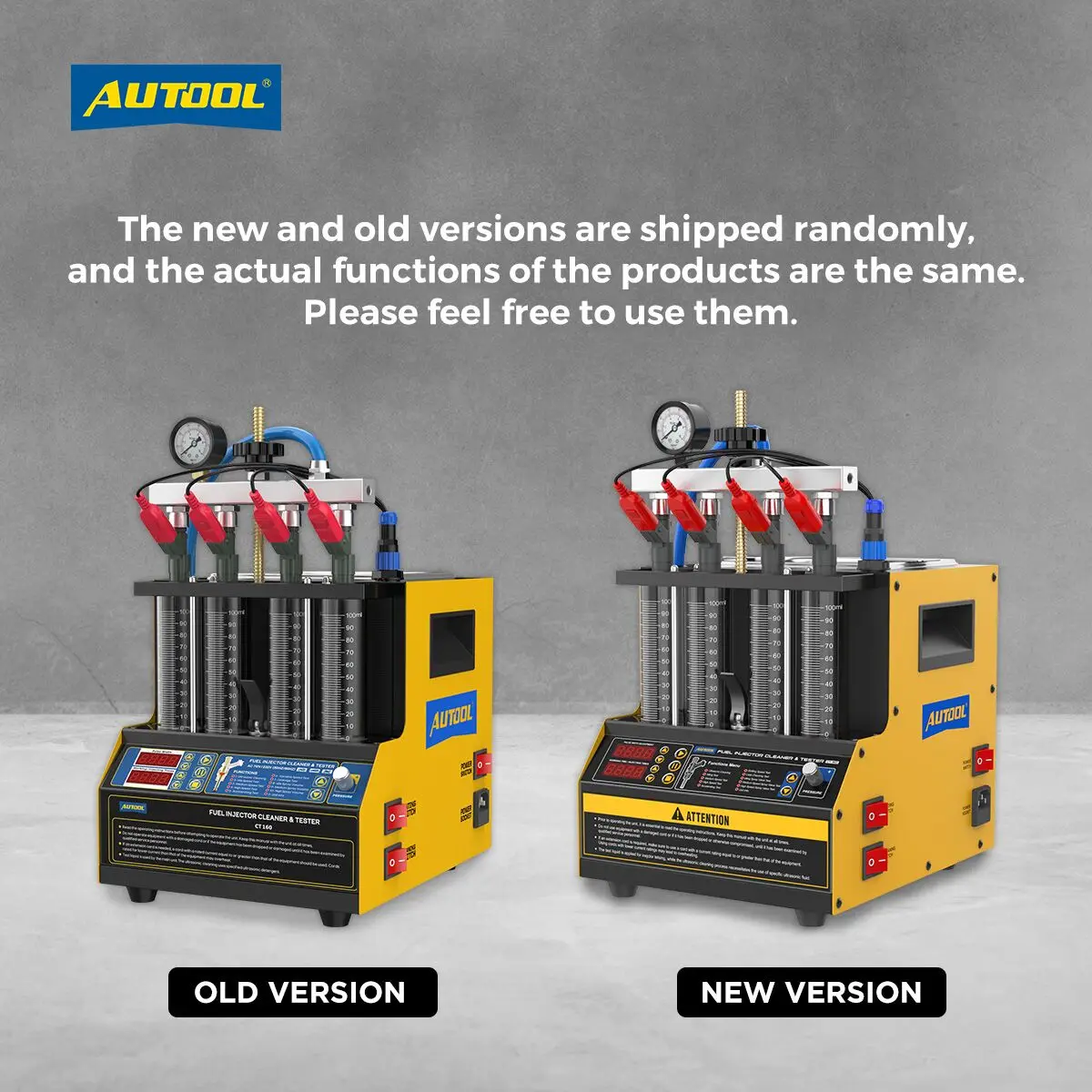

Kindly Reminder：
The new and old versions are shipped randomly, and the actual functions of the products are the same. Please feel free to use them.
CT160 Original Car Fuel Injector Tester Cleaner Features：
1. [Wide range of applications] : CT160 Car Fuel Injector Tester and Heating Cleaner have a good compatibility. Support for more cars and motorcycles to ‘clean’ and ‘test’ fuel injector. And also can be used to ‘clean’ diesel fuel injectors.
2. [Easy to operate ] :When cleaning, fix the car injector in the socket of the washing tank, add an appropriate amount of 3M cleaning fluid, and the cleaning can be completed after power on; when testing, fix the car injector in the oil separator and add it to the glass tube Industrial alcohol, the test can be completed after power on.
3. [Leading technology] :At present, only our company produces this portable and multi-functional automobile fuel injector cleaning and testing machine, and it has obtained a special patent.
4. [Safety]:Its working voltage range is 110-230V. When the machine is short-circuited, the fuse inside will automatically trip to shut down the running machine to prevent electric shock.
5. [3 year warranty]:For damage caused by non-human factors, we promise to resend parts for free within 3 years.

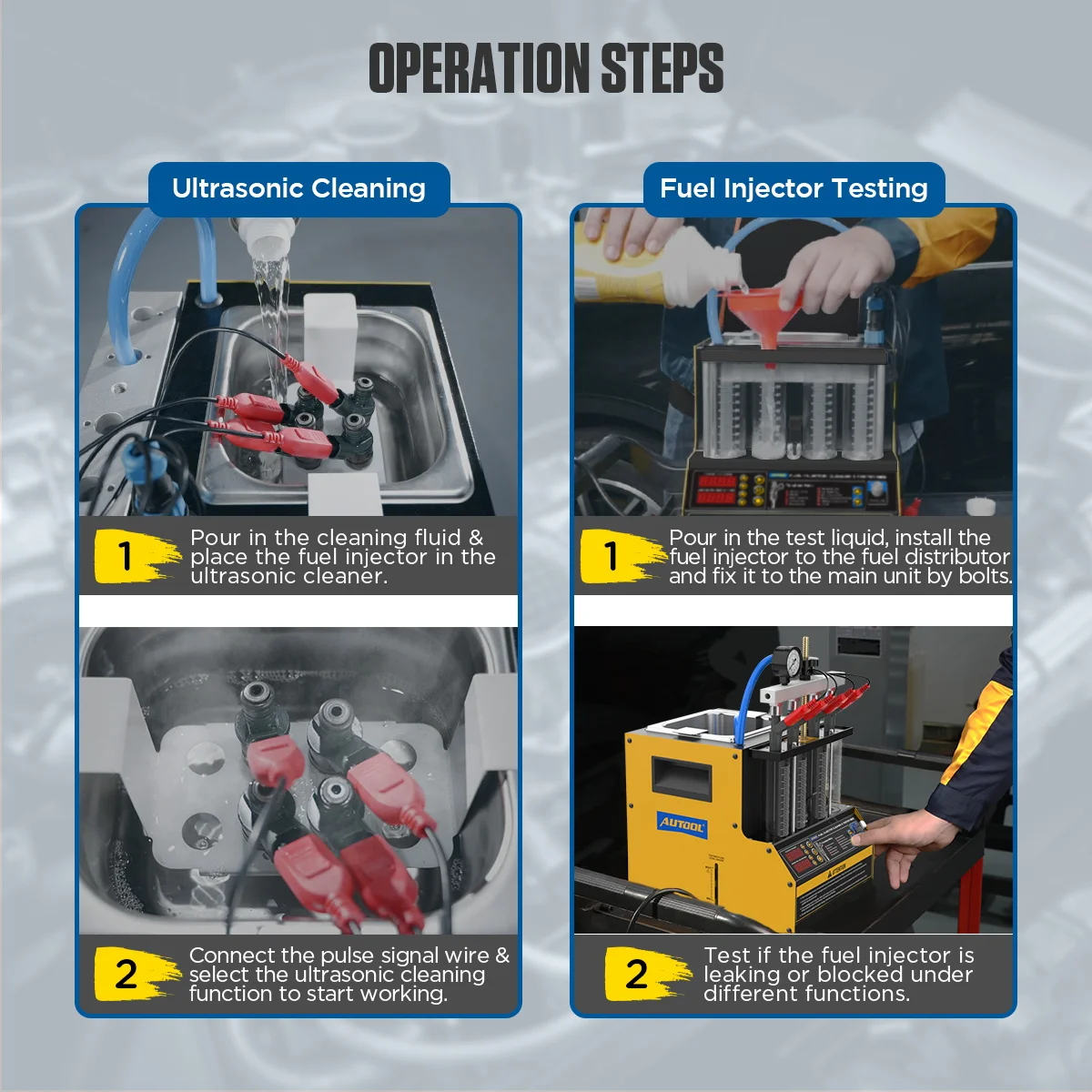

CT160 Car Fuel Injector Tester Cleaner how to work:
1. Clean injector's outside with cleaning liquid before open machine .Putting injectors in ultrasonic bathtub after the outside of injector are free of dirt.The cleaning fluid does not exceed the connection port of the pulse line.
2. Turn on ultrasonic system allowing the ultrasonic energy to dislodge any particles build-up inside the injectors.After cleaning, the remaining cleaning fluid can be recycled.
3. Fixed injectors on main machine,testing injectors for resistance, shorts, and current draw.The test liquid can be added to the half of the glass tube.
4. Performing leak test, spray pattern, and flow rate testing on flow bench.The injectors are now returned to the flow bench for retesting of all functions.
Main Function:
A Cleanning petrol injector with ultrasonic
B Cleanning spark plug.Put spark plug into cleaning tank ,input clean fluid and begin clean
C Testing injector injection in different situation, check leaking and blocking
D Cleanning injector without disassembly (need extra accessory and extra fee,choose by yourself)
E Cleanning throttle valve without disassembly. (need extra accessory and extra fee,choose by yourself)
F Cleanning and test motorcycle injector,testing function for HONDA YAMAHA SUZUKI SANYANG injectors only, (need extra accessory and extra fee,choose by yourself)

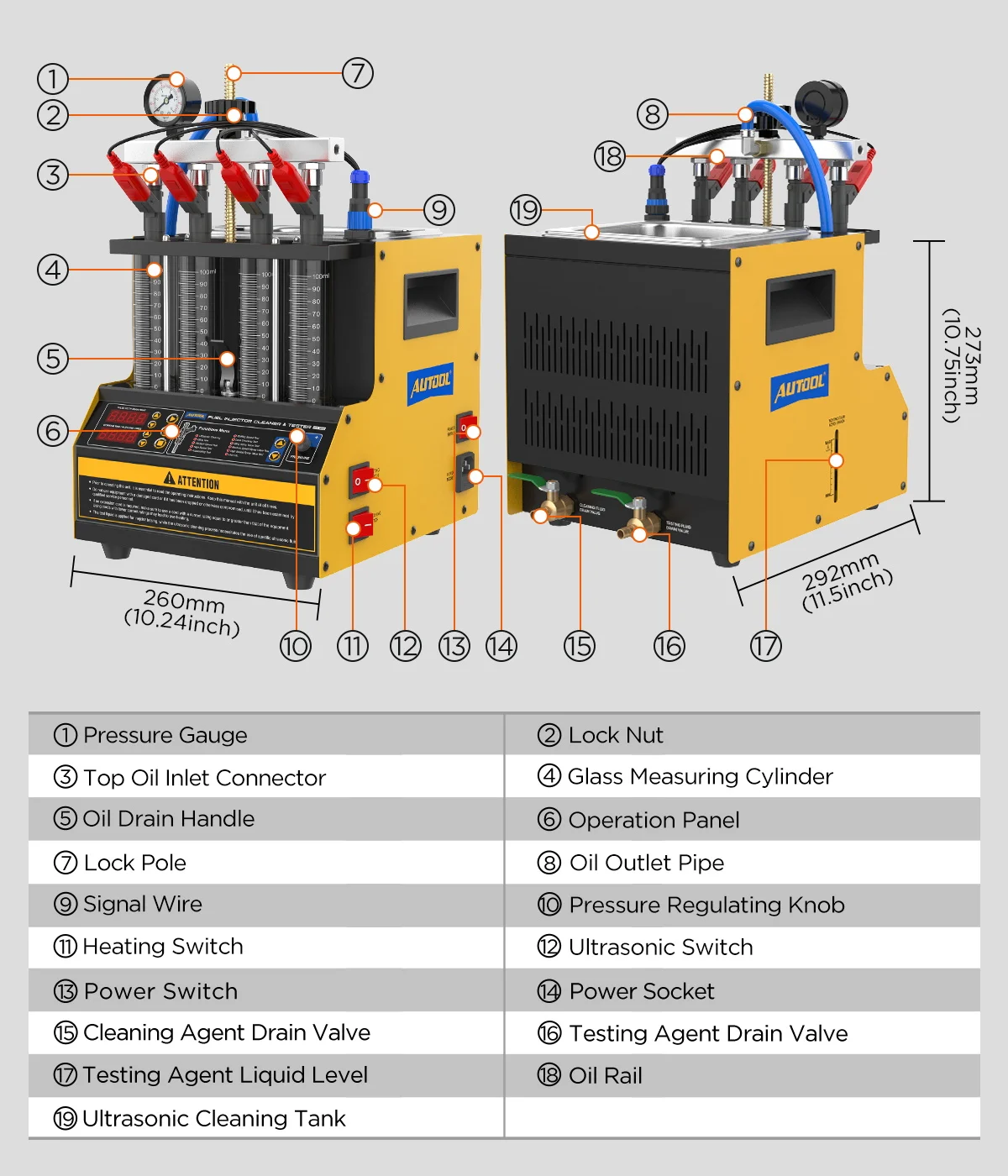

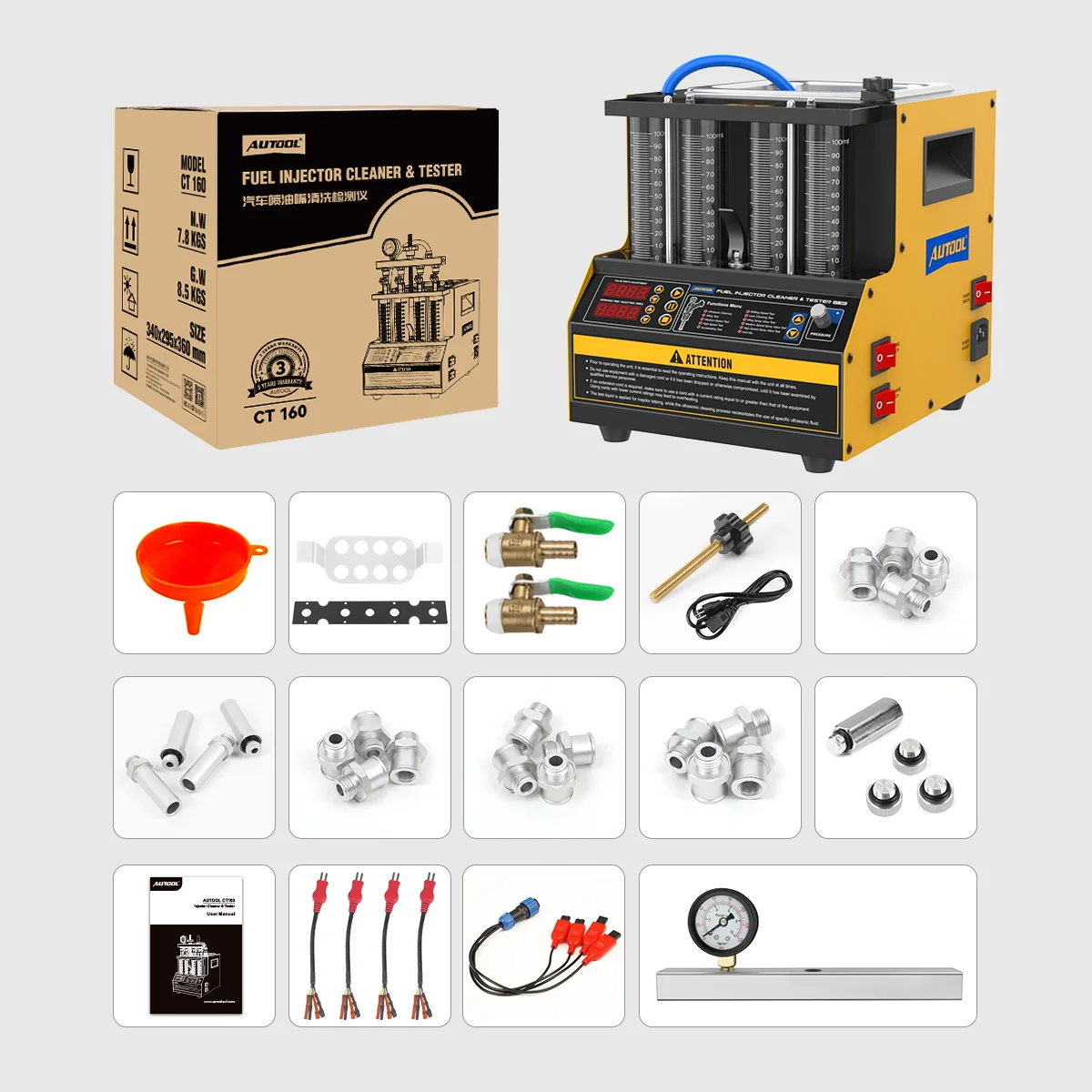

Packing list：
1pc * AUTOOL CT160 Fuel Injector Cleaner Tester Main Unit;
1pc * Funnel(for adding test fluid);
1pc * Ultrasonic Cleaning Bracket(for placing the injectors during cleaning);
1pc* Micro gaskets(for auxiliary installation of special fuel injectors)

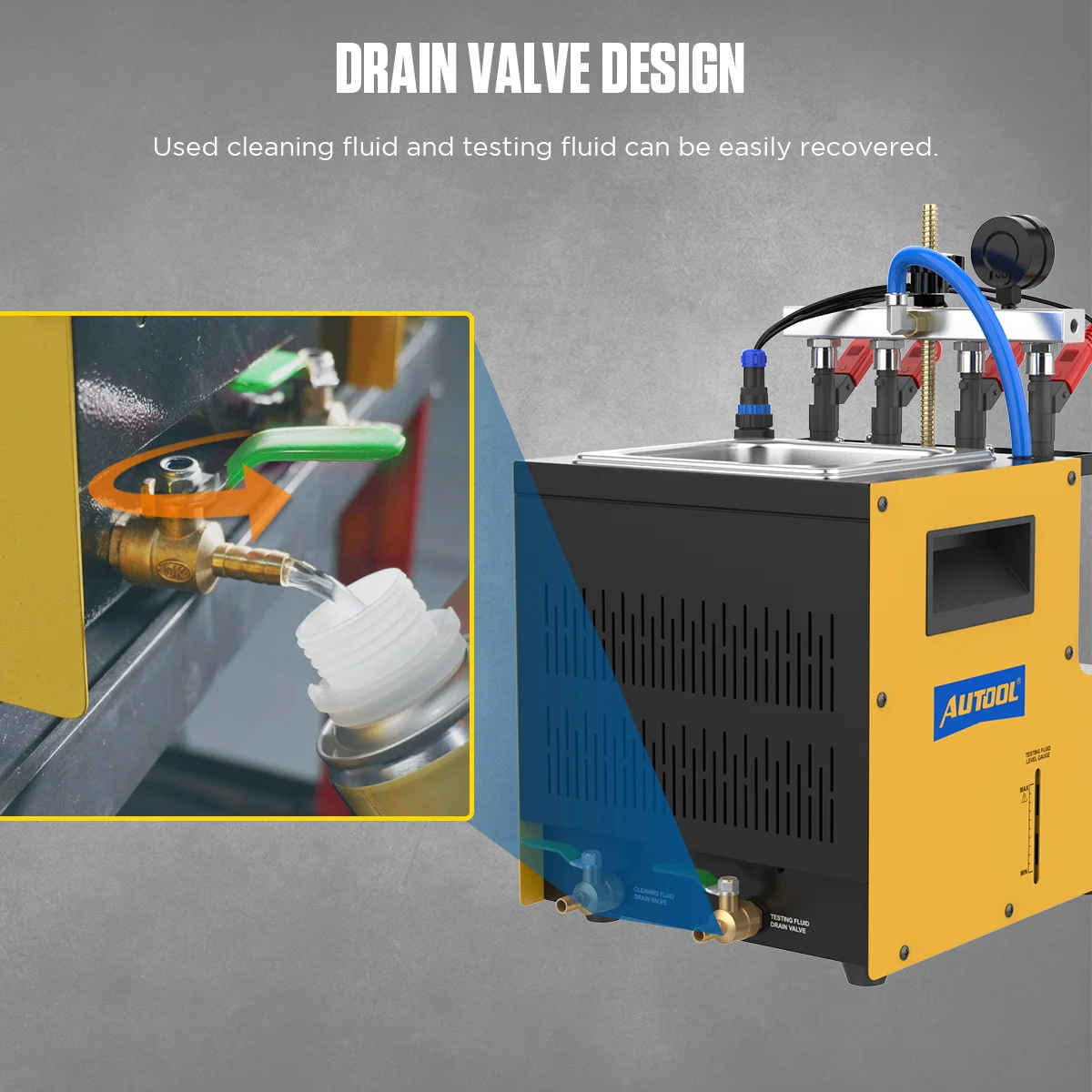

2pc * Drain Valve(To drain the cleaning fluid and test fluid);
1pc* Locking rods(For fixing the oil separator)
1pc * Locking Nut(For fixing the oil separator);
1pc * Extended plug (used to block the holes on the oil separator)
4pcs * Top inlet connectors φ9.8mm/φ11mm/φ10.6mm/φ10.5mm/φ13.5mm (for connecting the top of the injector and the oil separator hole)
3pcs* Plugs for oil separator(used to block the holes on the oil separator)
1pc* Drive signal line (used to transmit pulse signal, connect to the injector signal input pin)
4pcs *Adapter cables(For transferring the pulse signal line connector, instead of connecting the injector signal input pin)
1pc * Oil Separator(Distribution device for outputting pressurized test fluid to the injectors);
1pc * Power Cable(for connecting power supply);
1pc* Sealing gasket kit (for the sealing of fuel injector and oil separator junction) and 1pc * User Manual(Instructions)
Q&A：
1. No response at boot
Check whether the fuse on the bottom of the right side of the machine is damaged. If it is damaged, please replace the fuse (AC 250V/5A).
2. Oil leakage at the oil separator assembly
Oil leakage at the oil separator, please check whether the installed “O” ring is matched, and check whether it is deformed or damaged. If it is not matched or damaged, please replace it;The two black adjusting screws should not be too tight, too tight will also cause oil leakage of the oil separator.
3. The oil pressure drops slowly
The oil pressure cannot drop to zero within 1 to 2 minutes, and you can use the hex wrench to adjust the relief valve counterclockwise.
4. The buzzer sounds long without oil pressure
The machine has a lack of oil alarm function. When the liquid level in the oil tank is insufficient, a sound will be emitted, and the oil pump and fuel injection nozzle will be automatically turned off and returned to stop later.In the state, the prompt sound will be closed automatically after adding enough cleaning fluid. At this time, you must press the [Run] key to restart the oil pump.
5. Must be pressed 'Drain key' twice to drain test solution completely
The solenoid valve of the machine has an automatic shut-off function within 15 seconds; more liquid in the glass tube may require multiple drains.
6. The amount of cleaning and test solution added
When adding cleaning fluid, the cleaning fluid in the ultrasonic box should not exceed the connection port of the fuel injection nozzle; when adding test fluid, the testing fluid should not exceed two-thirds of the glass tube level display.
7.Problems with cleaning and testing 4 injectors
there is a short circuit of the machine, which causes the protection of the machine to restart.It may be that the resistance value of the fuel injector is too low or there is a problem with the fuel injector. You need to find the problematic nozzle and replace it with another normal nozzle for cleaning. If there is no problem with the fuel injector, one of the pulse lines is damaged. There are 6pcs impulse lines, and each impulse line needs to be tested separately. If all 6pcs pulse lines can be used normally, this is the problem of the fuel nozzle.
