SPECIFICATIONS
Brand Name: Autel
Hardware Version: MV108S
Special Features: USB
Software Version: MaxiVideo MV108S
Item Type: Code Readers & Scan Tools
Certification: CE
Language: English
Software Update: No
Product name: Autel MaxiVideo MV108S
Item Types: Digital Videoscope/Multipurpose Videoscope
Image Head: 8.5mm (0.33)
Optimal Viewing Distance: 1to 14 (2.54cm to 35.56cm)
Feature 1: White LED lights to illuminate the inspection areas
Feature 2: Small diameter allows it to be used in the tight sp
Feature 3: Powerful and perfect for inspecting most spark plug
Feature 4: Super bright LED and high resolution provide crystal clear images
Waterproof: Imager head and cable to 1m
Compliance: FCC (EMC), CE (EMC and LVD)
Warranty: 1 Year Free Warranty
Work with 1: MK808S/MK808BT PRO/MP808BT PRO/MS906BT/MK906BT/MS906CVMS906TS
Work with 2: MS919/MS909/MS908/MS908S PRO
Work with 3: MS908S/MK908/MK908P or PC

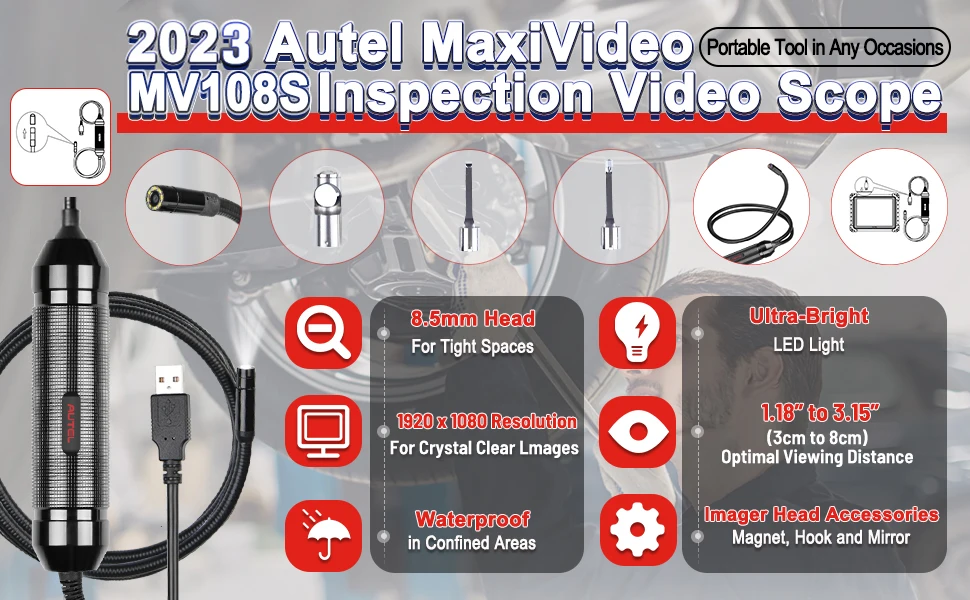

Autel MaxiVideo MV108S 8.5mm Digital Inspection Camera Powerful for MaxiSys Pro and PC support video inspection scope

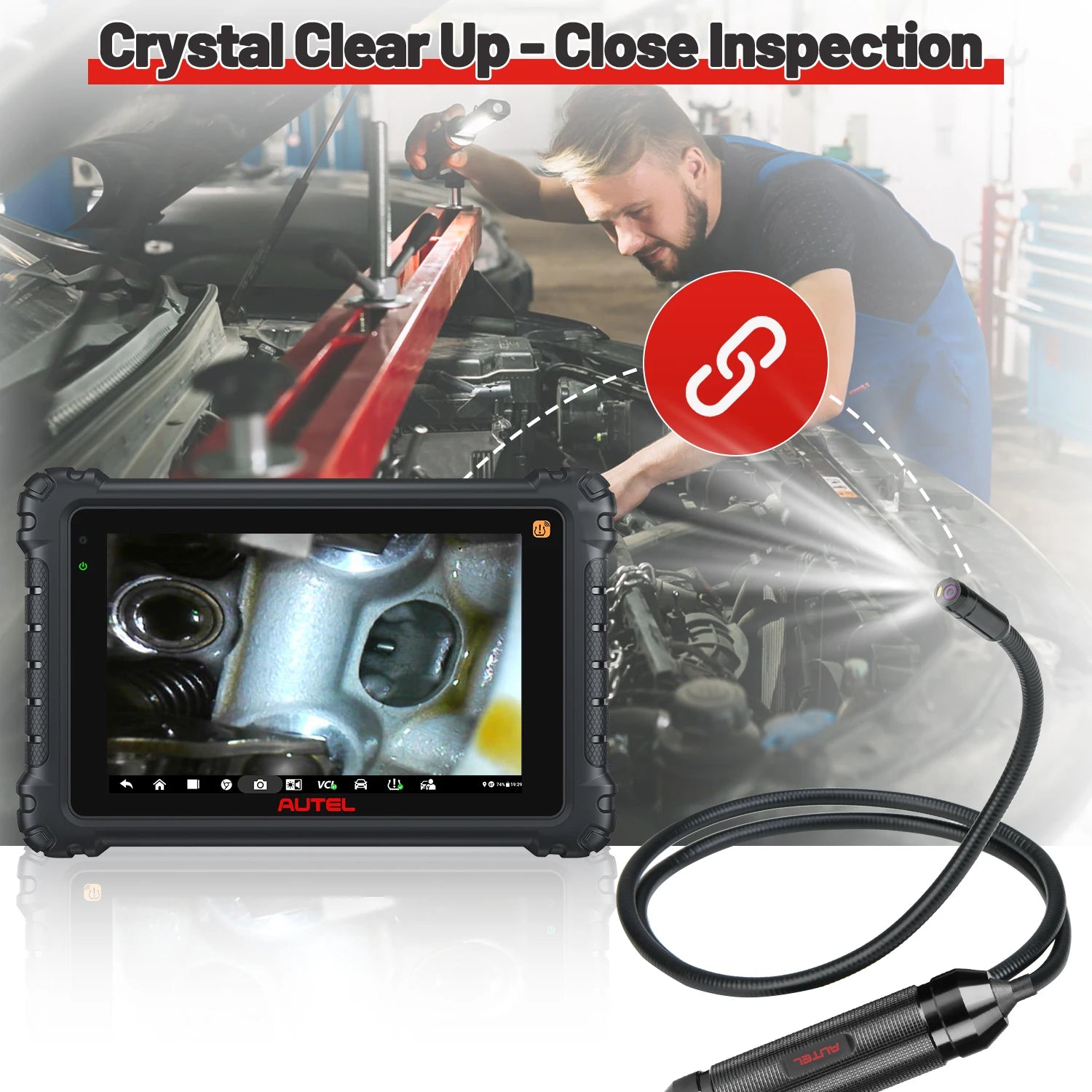

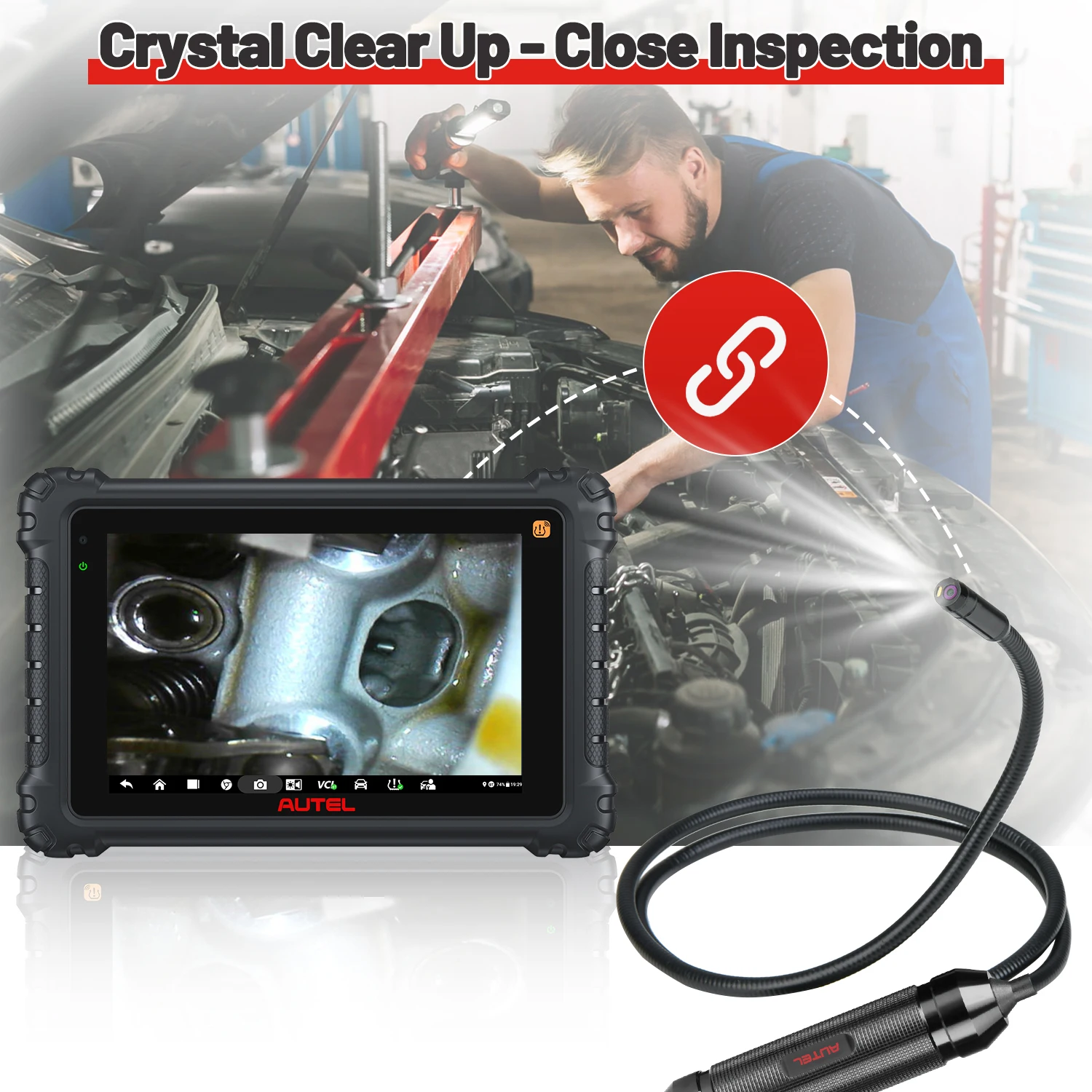

The MV108S digital inspection camera is designed to work with MaxiSys series products (except MaxiSys 906) or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.
Work with：
MK808S/MK808BT PRO,/MP808S/MP808BT PTO/MS906BT/MK906BT/MS906CVMS906TS//MS919/MS909/MS908/MS908S PRO/MS908S/MK908/MK908P...... or PC
Feature:
• White LED lights to illuminate the inspection areas.
• Small diameter allows it to be used in the tight spaces.
• Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.
• Powerful and perfect for inspecting most spark plug holes.
• Super bright LED and high resolution provide crystal clear images.
NOTE:
The power of MaxiVideo inspection camera is directly supplied by the USB port, and no external power source is needed.

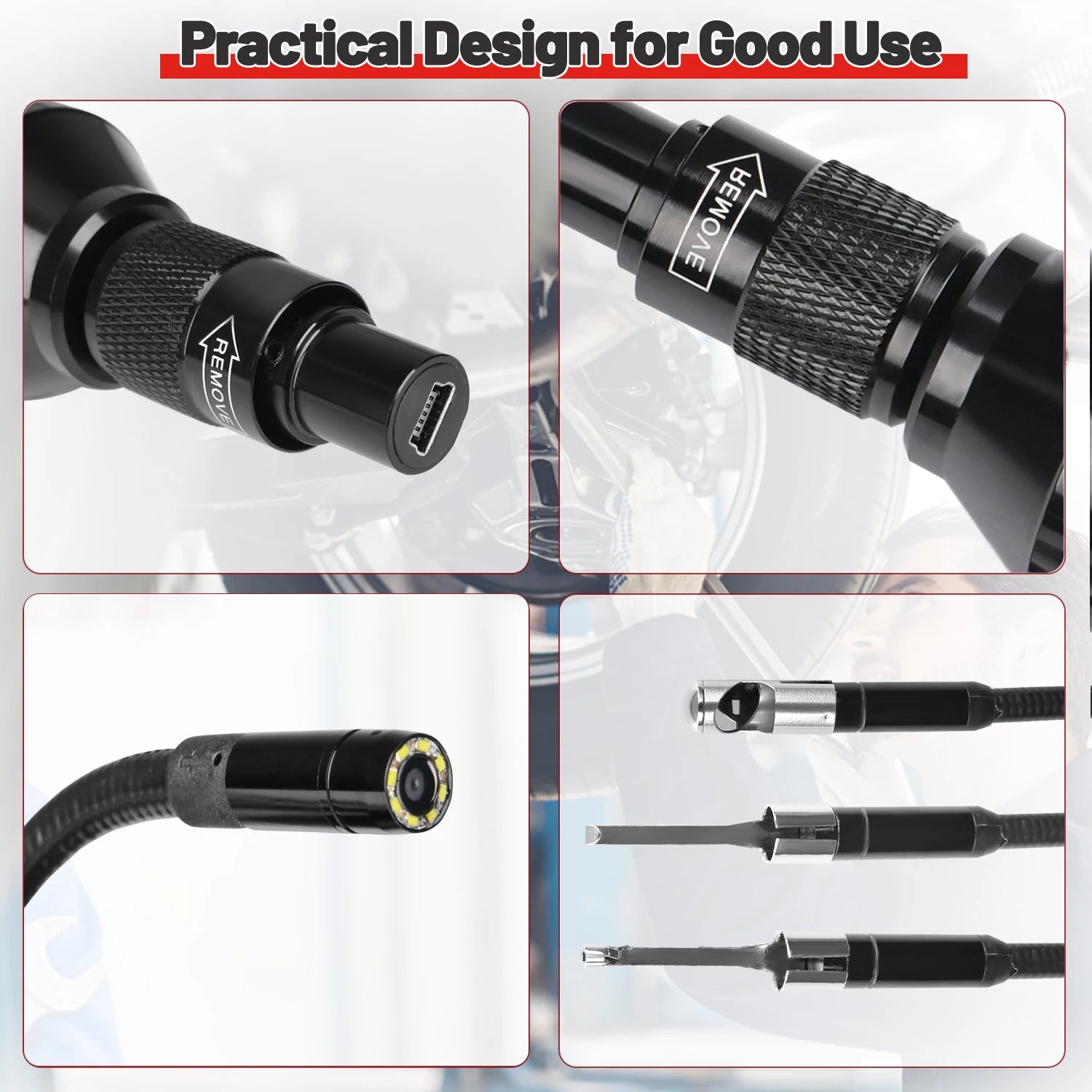

1.Removable Imager Head Cable – connects to the tool when performing digital inspections for image and video viewing
2.Handgrip – ergonomically designed handle for comfortable grips and agile operation
3.USB Cable – connects the Digital Inspection Camera to MaxiSys tablet
IT ONLY TAKES 3 STEPS TO START!
1.Connect the Removable Imager Head Cable to the Handgrip. Make sure the key and slot are properly aligned. Once they are aligned, finger-tighten the knurled knob to hold the connection firmly in place.
2.Power up the MaxiSys Tablet, and select the “Digital Inspection” application on the Job Menu.
3.Connect the MaxiVideo inspection camera to the MaxiSys Tablet with the USB connection, and that’s it!

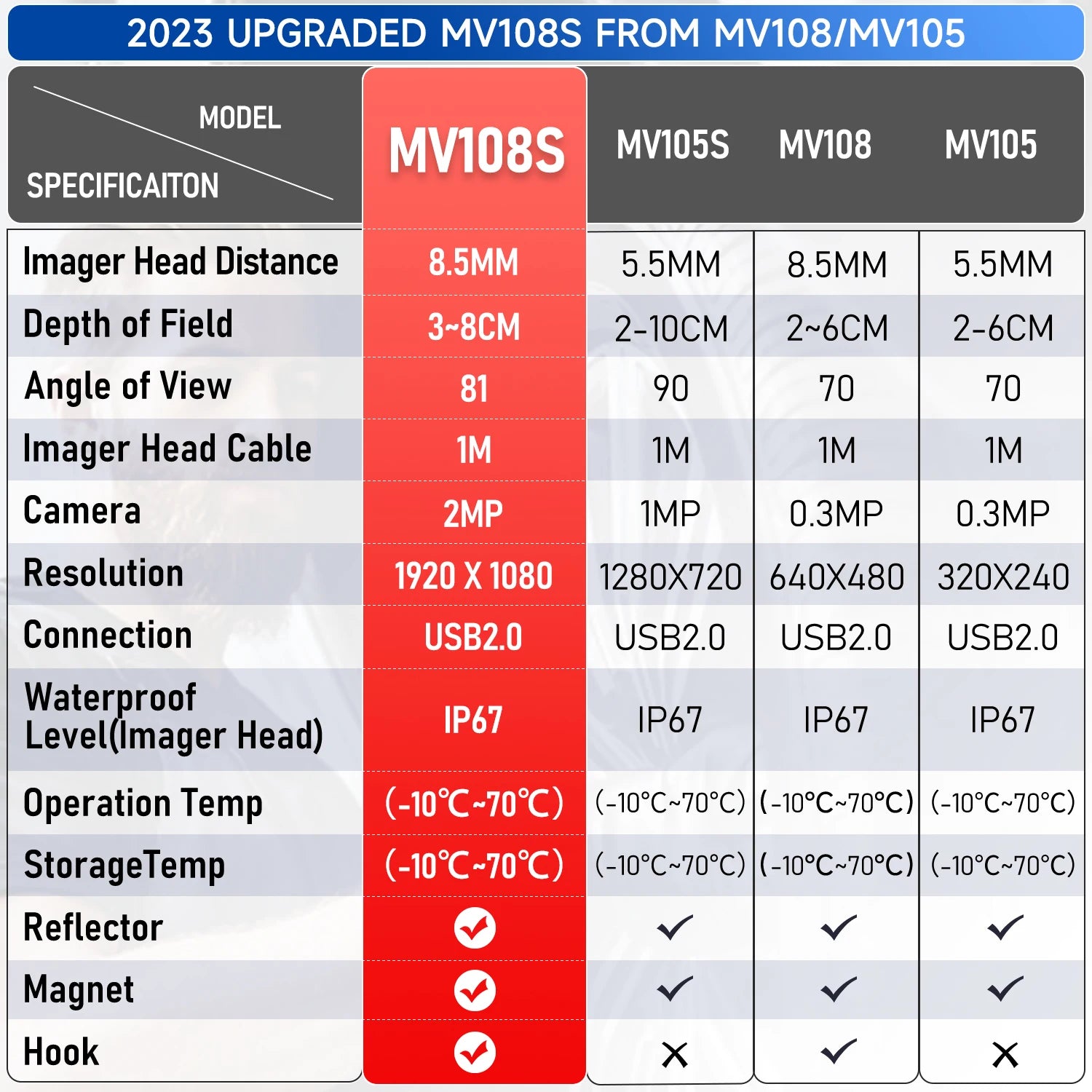

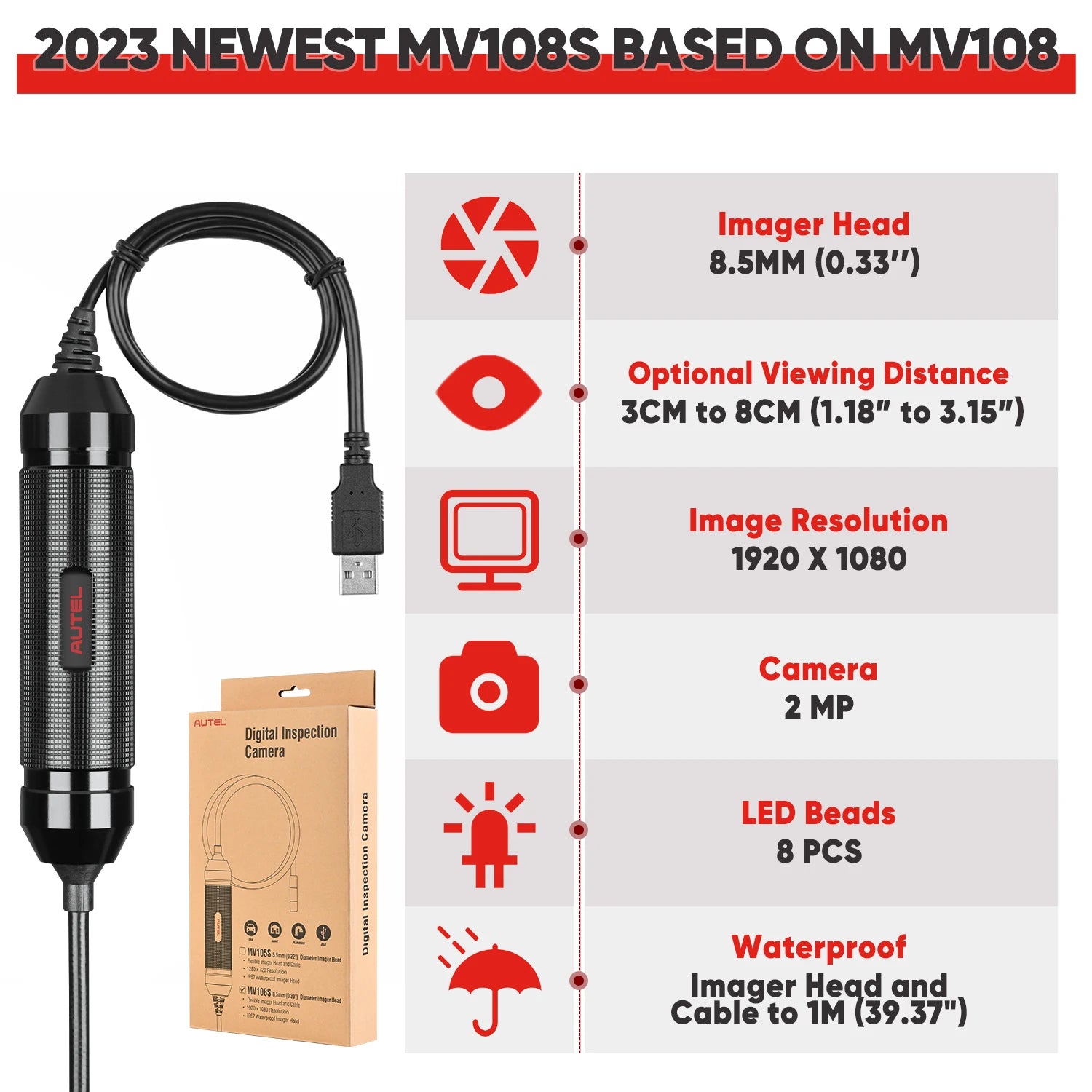

SPECIFICATIONS：
Imager Head Distance：MV108S: 8.5 mm
Camera：MV108S: 2 MP, MV108S: 1920 x 1080
Depth of Field：MV108S: 3cm to 8cm (1.18” to 3.15”)
LED Beads：8 pcs
Imager Head Cable Length：1 m (39.37")
Waterproof Level (Imager Head)：IP67
Operating Temp.：-10 °C to 70 °C (14 °F to 158 °F )
Storage Temp.：-10 °C to 70 °C (14 °F to 158 °F )

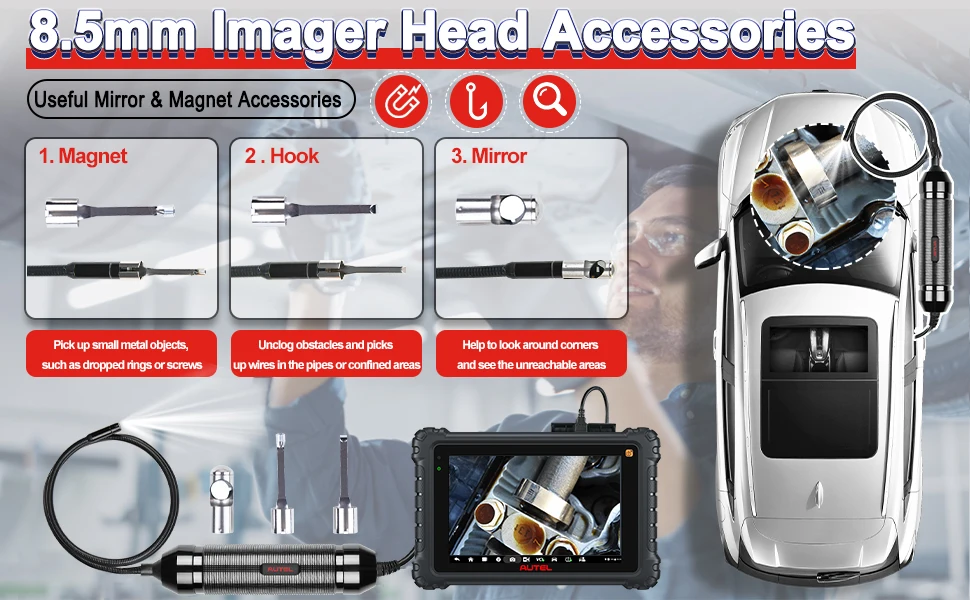

Imager Head Accessories
The MaxiVideo Inspection Camera kit is supplied with useful accessories, such as magnet, hook and mirror, which enable the video scope to perform special tasks.
8.5mm Imager Head Accessories
1.Magnet – picks up small metal objects, such as dropped rings or screws 2. Hook – unclogs obstacles and picks up wires in the pipes or confined areas 3. Mirror – helps to look around corners and see the unreachable areas.
The accessory assembly is as simple as the picture shows!
For MV108S (with 8.5mm imager head)
The three accessories, including the Magnet, Hook, and Mirror, can be attached to the Imager Head as described. Hold the accessory and the imager head. Slip the end of the accessory over the imager head and then fix it as shown.

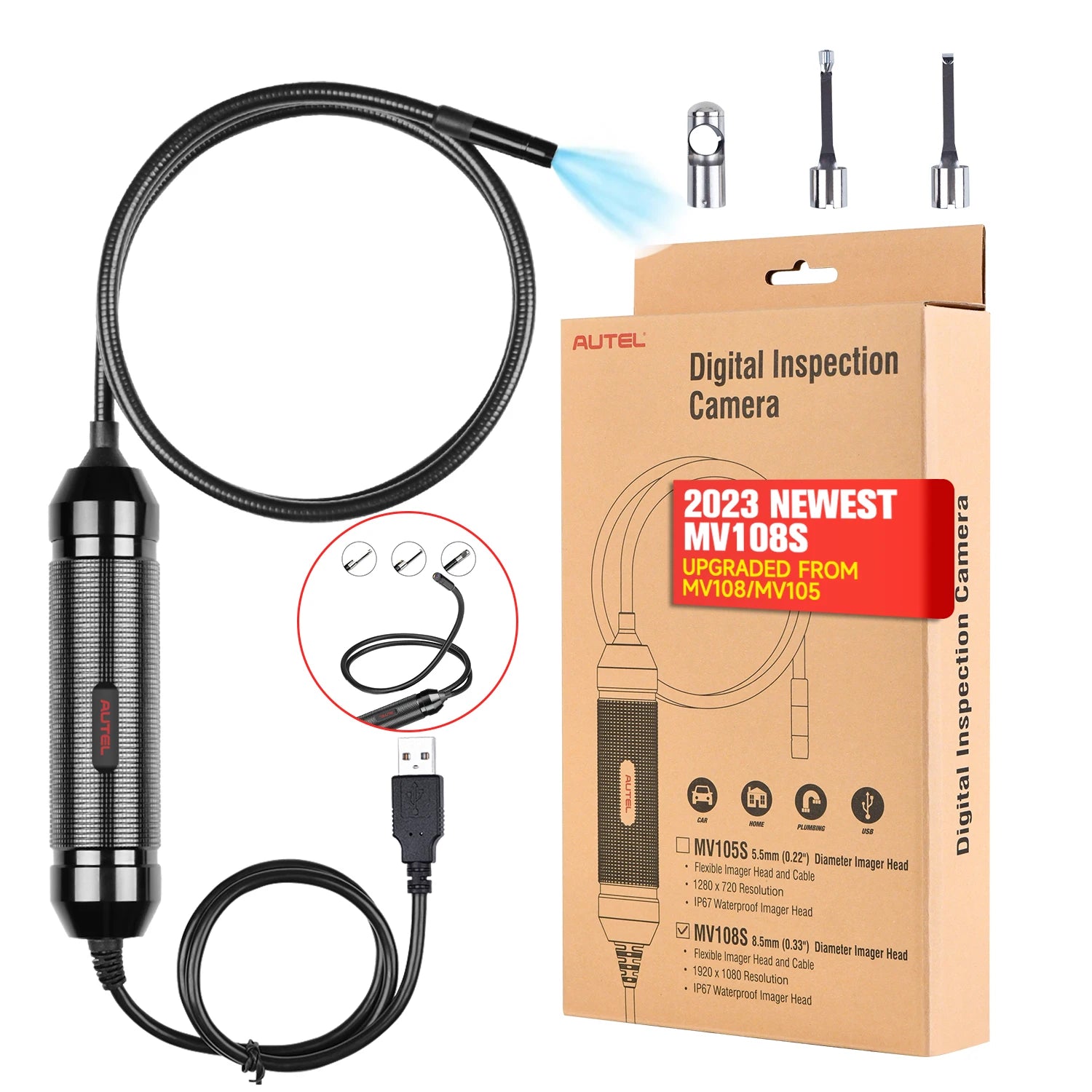

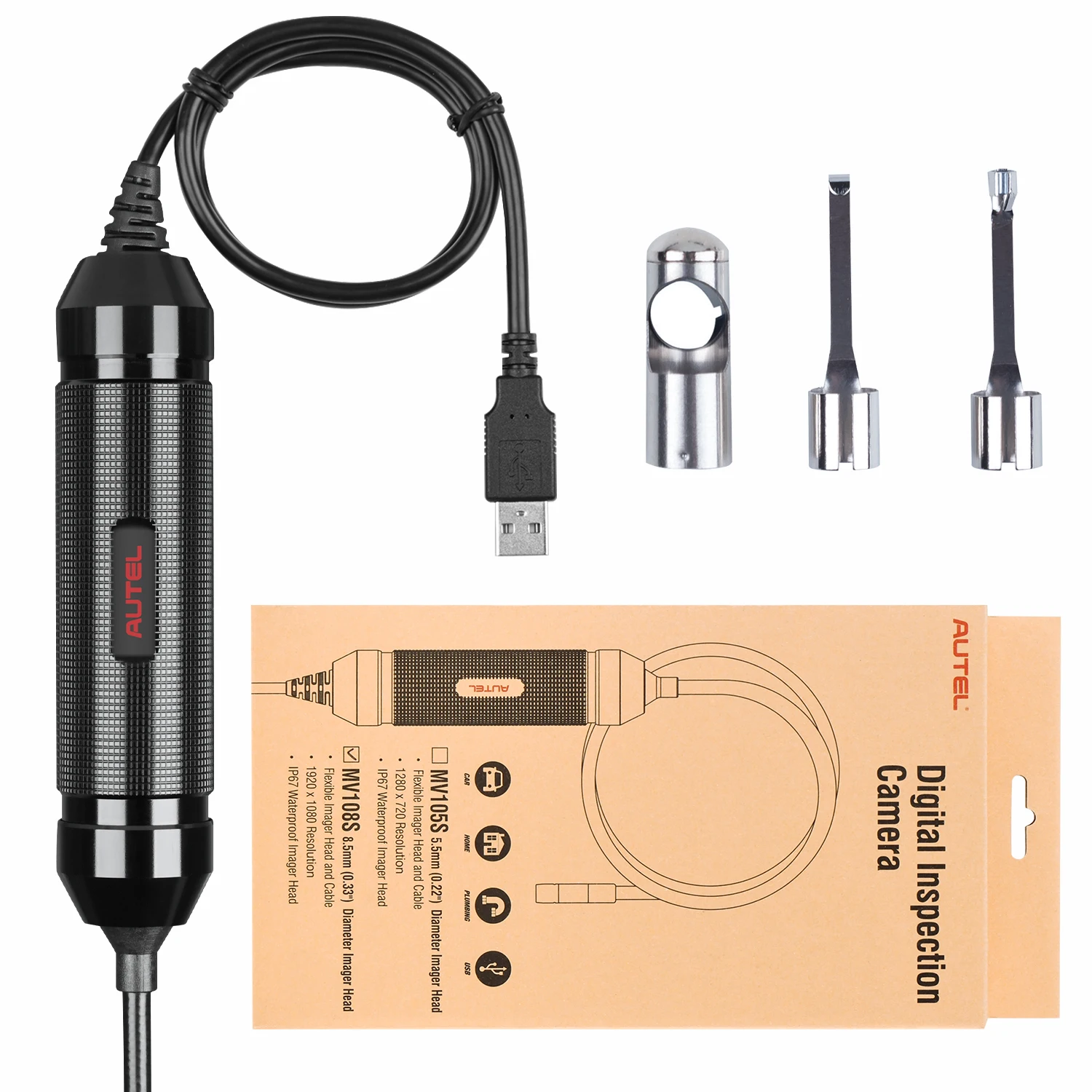

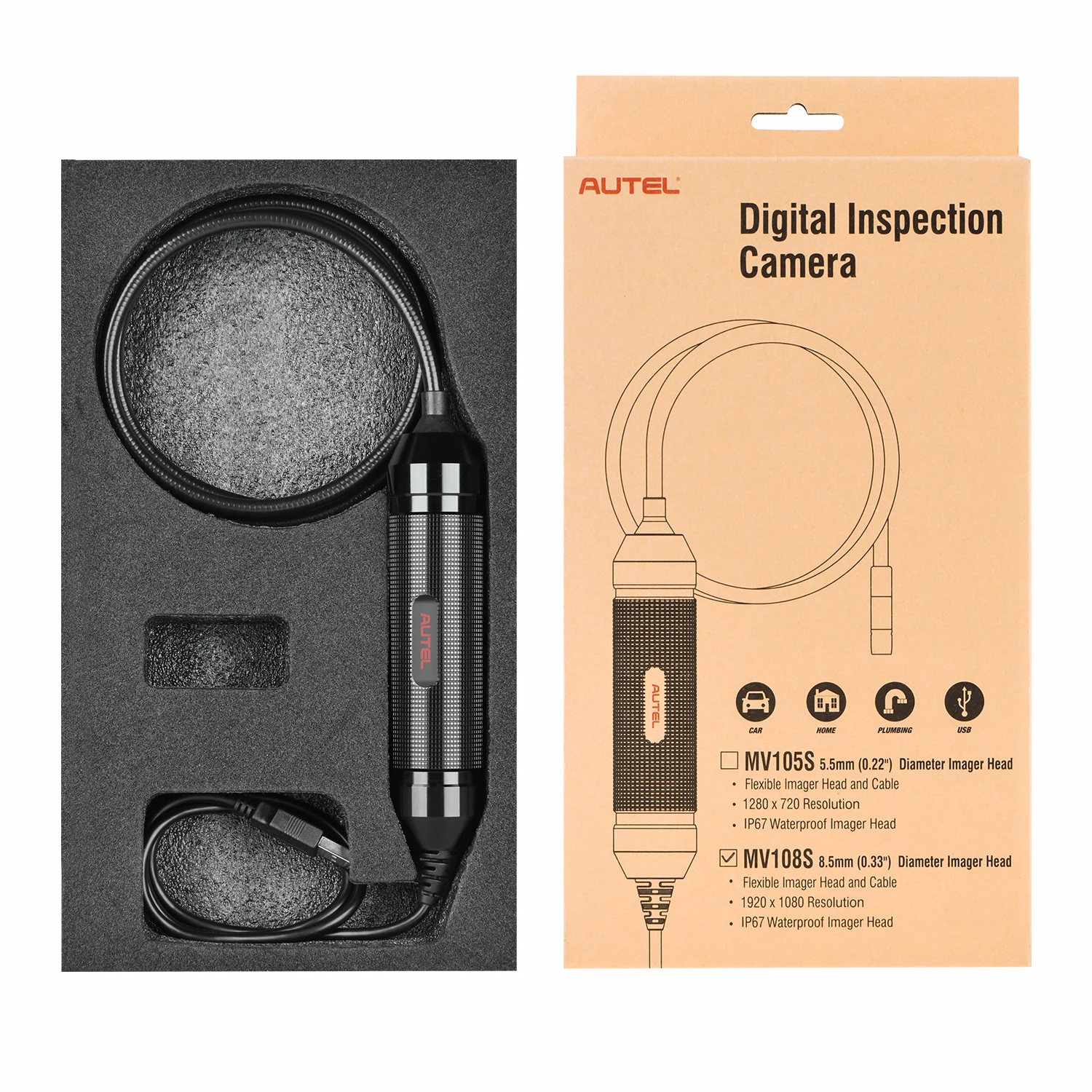

Packing list：
1pc x MaxiVideo MV108S
1pc x Magnet
1pc x Mirror
1pc x Hook
